Sawdust Dryer

Product Introduction:
The sawdust dryer is used to dehydrate wet sawdust into dry powdered or granular sawdust. The sawdust dryer consists of heating device, feeding device, transport device, discharge device, dust extraction device and other connecting parts.

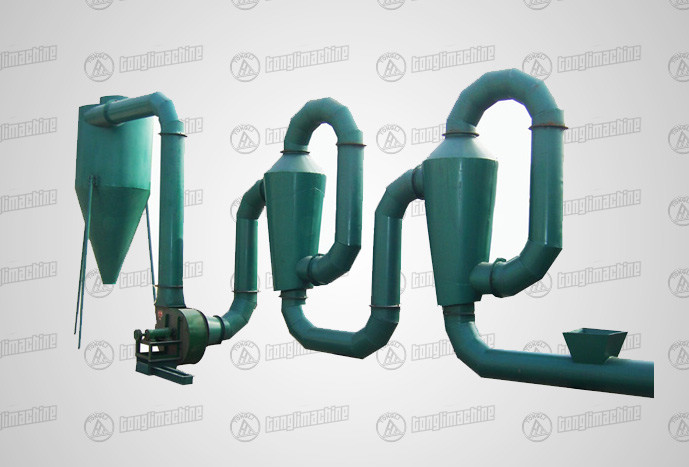

sawdust-dryer


Features:
1. High drying strength due to highly dispersed of the sawdust in the hot gas stream, and the material gets fully dried.
2. Short drying time.
3. Simple structure, taking small floor area, simple construction and maintenance.
4. Large capacity, high thermal efficiency reaching 60% in case of drying non-bound water.


Working Principle:
Wet material is loaded from one head of the dryer, and then it is stirred by the bafflers that are uniformly distributed in the barrel. Material is uniformly distributed and dispersed in the dryer, fully contact the hot air of parallel (or counter) flow, so the drying process is expedited, and the impulsion power of media transfer is enhanced. During the drying process, material is under the effect of angled baffler and hot air, moves to the star shape unloader that is at the other head of the dryer.


Technical Parameters:
Model
HGT-1000 x 10
HGT-1200 x 12
HGT-1500 x 14
Power
4kw
7.5kw
11kw
Capacity
1~3ton/h
5~7ton/h
8~10ton/h
Diameter of feed materials
0-200*240 mm
0-200*240 mm
0-200*240 mm
Working Temperature
stove 300°C
stove 300°C
300°C
Consumption of wood waste
20-30kg/h
20-30 kg/h
40-50 kg/h
Overall size
Φ1m, length 10 m
Φ1.2m,length 15 m
Φ2.2m,length 28 m
Weight
6000kg
10000 kg
18000 kg
