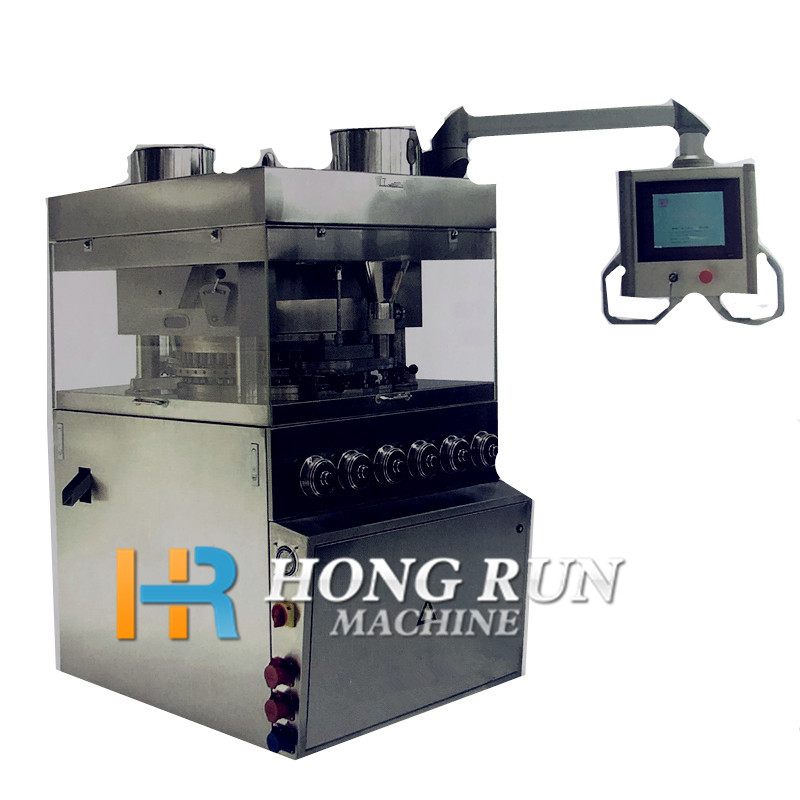

Rotary Tablet Press

Brief introduction

The speed of the turntable, the filling depth of the material and the thickness of the tablet can be adjusted during the pressing of the rotary tablet press. The mechanical buffer device on the machine can avoid the damage of parts caused by overload. The machine is equipped with powder suction box. The suction nozzle can absorb the dust produced by the machine when it is moving, avoid sticking and clogging, and recycle the raw materials for reuse.

Technical Parameter

Maximum press depth: 15mm
Maximum tablet thickness: 6mm
Turntable speed: 11-28 rpm
Production capacity: 43-110,000 tablets/h
Motor power: 2.2 kW, 960 rpm, 380/50 V/H
Shape size: 930 *900 *1600 mm

Working Principle of Single Stamping Machine
The single Stamping Machine is characterized by a small desktop electric continuous pressing machine, which can also be manually operated. The pressed tablets have average thickness, high gloss and need not be polished. Because the sheet press has only one die, it is called the sheet press. The filling depth of material and the thickness of sheet press can be adjusted.
